Adding a Part File

Parts can be added/created in RTA by creating the part through the parts list, adding a part on the fly when posting to a work order, or adding a part on the fly when adding to a purchase order. This document will discuss how to build the part file via the create part feature in the parts list.

To see how to add parts on the fly, refer to Adding Parts On The Fly

The record contains multiple tabs. It will not be necessary to enter information in every tab or every field at this time unless desired. The goal of this document is to get up and running quickly.

For information on the additional tabs and fields that can be utilized for vehicle files in RTA, please visit Part File Table of Contents.

This article will cover only the necessary items needed to get a part added into RTA. Please refer to the link above for information regarding all of the tabs and panels available for use. While additional tabs are optional, we HIGHLY recommend also visiting the bottom section which suggests additional items to consider entering to save money and time.

Follow the below steps to add a part in RTA

Primary Part Panel

 Click here to expand...

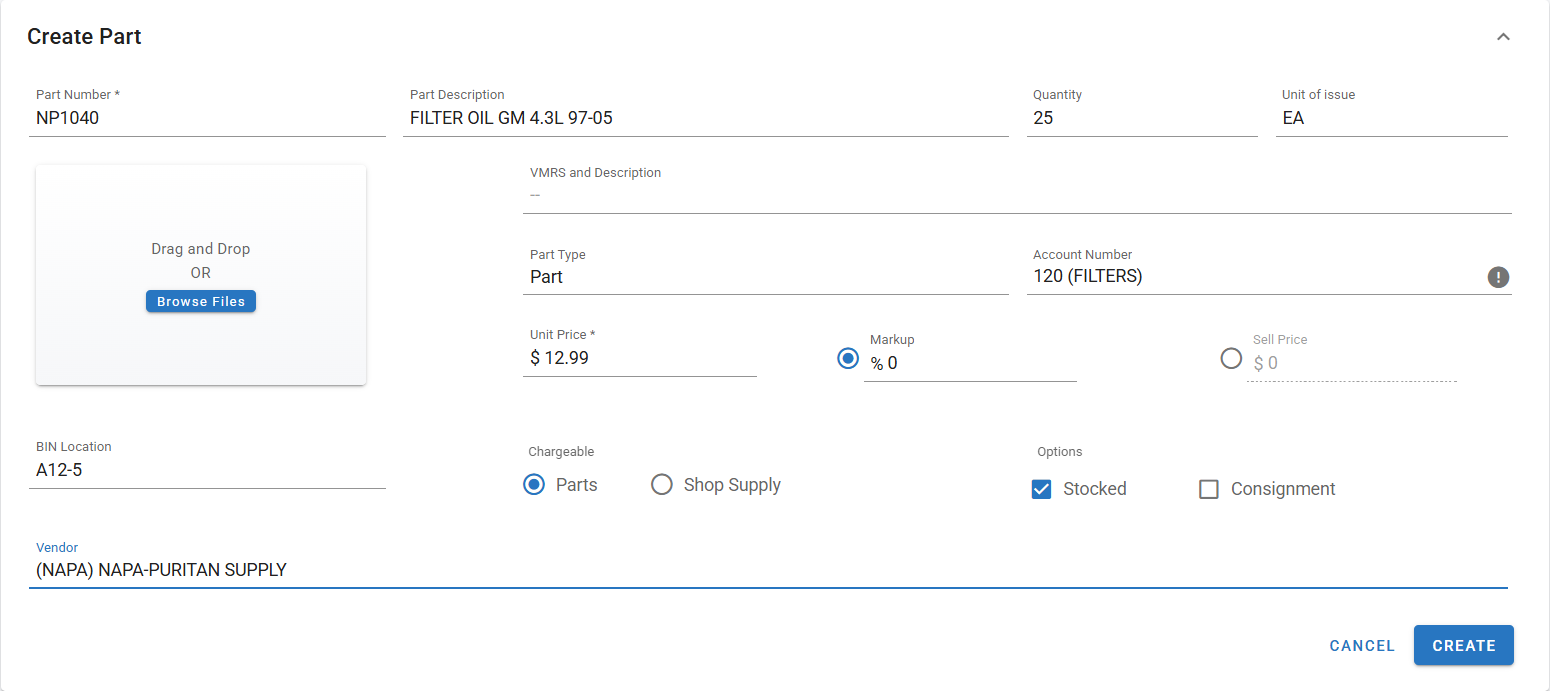

  1. Select Parts from the menu

  2. Click + to Add Parts

  3. Add a profile pic of the part if desired. Refer to Parts - Info Panel

  4. Give the Part a Part number - up to 25 characters - omit spaces

    1. If planning to use barcodes now or in the future, do not use the / or # or & characters in the part number as this could cause errors with barcoding

  5. Enter a part description - Up to 40 characters - This will be used for search and sort purposes. We suggest using a consistent format. Also include viable descriptions to make it easier when attempting to find parts. For example, there may be multiple oil filter types. Ensuring the descriptions indicate the specific type can save time.

    1. Start like items with the same header so they pull together when sorting

      1. For example, all filters should start with the word Filter and then have the rest of the description after it see samples below

    2. Here are some examples to ensure that sorting and locating the right part is easier for everyone

      1. Filter Oil Ford F150 4.6L

      2. Filter Oil GM 4.3L

      3. Filter Air Cabin Toyota 1GRFE 0209

      4. Filter Air Napa Gold Ford 6.7L

      5. Oil Motor Semi-Syn SAE 5W30

      6. Oil Syn Gear 75W90 API GL5

  6. Enter the current Quantity on hand

  7. Select a VMRS code if this part will have a part warranty

  8. Select the appropriate Part Type - Most parts will fall into the Parts category

    1. The RTA System separates vehicle costs and usage into eight categories. More may be added Refer to System Codes for instructions on adding more.

  9. Enter Account Code if applicable - up to 25 characters - can be used to denote a general ledger account number for accounting purposes

    1. The information entered here is used in purchase orders if the "Use Account Codes" switch is set to YES or VALIDATE.

    2. Refer to Part Accounts Setting for further setting up part accounts

  10. Enter the Unit Price for this part based on the primary vendor price

  11. If a markup is desired when the part is charged out on a work order, add the markup percentage

  12. If there is no markup the Sell price will list the same as the unit price. If there is a markup entered, the sell price will include the unit price plus the markup percentage

  13. The sell price can be adjusted as well by clicking in the radial button and entering a flat sell price. Doing so will automatically adjust the markup percentage

  14. Select the applicable Chargeable Field:

    1. Parts - if selected, items will be noted and charged to work orders to which they are applied

    2. Shop Supply - if selected, this part is something either

      1. not chargeable because its cost either cannot be associated with one specific job (ie. safety goggles) or

      2. its cost is so diminutive individually, that it is too difficult to associate with one specific job (ie. solder, bolts, etc.

  15. Select the applicable Options Field:

    1. Stocked - if selected, RTA creates requests for stocked parts when the inventory level falls below the reorder point set in the Inventory tab

    2. Consignment – if selected, this part is flagged as a consignment part and the option exists of including or excluding their values from part inventory lists

  16. Choose the primary vendor for the part

    1. A part can have multiple vendors associated with it and these vendors can be ranked in terms of primary and then so on

      1. Only one primary vendor is selected at the time of part file creation

      2. Additional vendors can be added after the part file is created

    2. Vendors have to be created in RTA prior to them being add to a part file.

    3. To add additional vendors, do the following: Refer to Vendors for more information on the Vendor Panel in the part file

      1. Click the + button in the Vendor Panel

      2. Enter the vendor name to be added to the part file (as you start typing, you should see likely matches from the created vendors)

      3. Click the appropriate vendor

      4. Enter the Vendor Part Number (this is the number the vendor uses for this specific part)

        1. This is also used as the Alt Part # in the Purchase Order file which acts as a cross-reference number for the main file number allowing users to access the correct part file using any of the established numbers associated with that file

      5. Enter the pricing (either as a single unit or bulk pricing)

      6. Enter a manufacturer if desired

      7. Click Save

  17. Click Create

While the rest of the fields are optional - we HIGHLY recommend doing a bit more entry.

Let RTA help save time and money and be sure to input the following at a minimum:

  • Warranty Information - Save thousands of dollars by allowing RTA to help track warranties on parts to ensure that parts aren’t being purchased when they could be covered. Refer to Parts Detail Tab for information on adding warranty tracking

  • Stocking - Help inventory recording and auditing by ensuring that stocking areas for the part are recorded. In addition, if leveraging scanners now or in the future, this area can be leveraged to speed up parts audits and cycle counts by using bin labels and part tags (also will need to follow the Tracking Options below as well for tags). Refer to Parts Inventory Tab for information on adding stocking items

  • Ordering - Let RTA help with parts inventory through requests and purchase orders. Fill in the reorders section to save time with orders and to help maintain appropriate inventory through requisitions, workorders, and purchase orders. Refer to Parts Inventory Tab for information on adding reorder options

  • Tracking Options - Let RTA help with the creation of part tags and documenting necessary MSDS tracking. Refer to Parts Details Tab for information on adding tracking options
